รายละเอียดสินค้า:
|
| ชื่อสินค้า: | ตัวเติมช่องว่างความร้อนสีเทาเข้มพร้อมค่าการนำความร้อน 5.0W/mK เพื่อการจัดการความร้อนอย่างมีประสิทธิภ | ความหนา: | มีให้เลือกหลายความหนา |
|---|---|---|---|
| การนำความร้อน: | 5.0 วัตต์/ลบ.ม | การก่อสร้าง: | อีลาสโตเมอร์ซิลิโคนเติมเซรามิก |
| ความหนาแน่น: | 3.4 g/cm³ | คำหลัก: | ฟิลเลอร์ช่องว่างความร้อน |
| แบบอย่าง: | TIF100-50-11F | แอปพลิเคชัน: | เพื่อการจัดการระบายความร้อนอย่างมีประสิทธิภาพในอุปกรณ์อิเล็กทรอนิกส์ |
| สี: | สีเทาเข้ม |

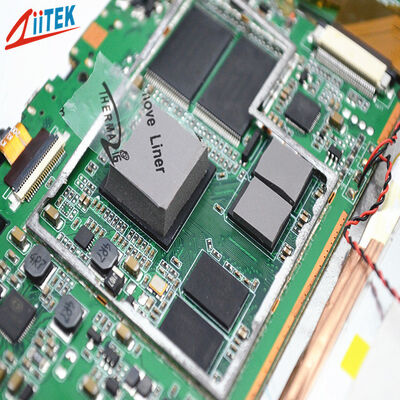

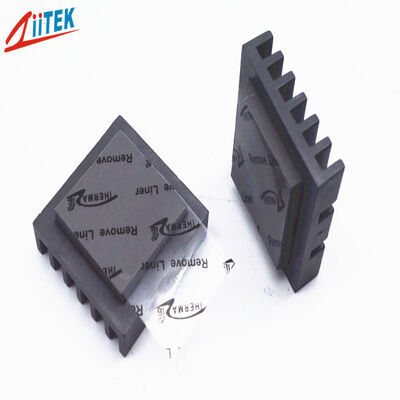

Dark Gray Thermal Gap Filler With 5.0W/mK Thermal Conductivity For Effective Thermal Management In Electronics
Company Profile
Dongguan Ziitek Electronic Material and Technology Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
Products description
The TIF®100-50-11F Series is a structurally supportive thermal pad designed to provide high heat dissipation while also ensuring structural support and durability. It can reliably fill interface gaps, transfer heat, and offer mechanical support for stacked components, resisting compressive deformation. This product is an ideal choice for applications that require a balance between heat dissipation,insulation, and mechanical stability.
Features:
> Good thermal conductive: 5.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> RoHS compliant
> UL recognized
Applications:
> Mainboard/mother board
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Automotive electronics
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers
| Typical Properties of TIF®100-50-11F Series | |||
| Property | Value | Test method | |
| Color | Dark gray | Visual | |
| Construction | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.3 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.00) | ||
| Hardness | 65 Shore 00 | 60 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant | 7.5 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0 W/m-K | ASTM D5470 | |
| 5.0 W/m-K | ISO22007 | ||
Products specification
Standard Thickness: 0.010"(0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size:16"×16" (406 mm×406 mm).
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment), DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: How do I place an order?
A:1. Click the "Sent messages" button to continue with the process.
2. Fill out the message form by entering a subject line, and message to us.
This message should include any questions you might have about the products as well as your purchase requests.
3. Click the "Send" button when you are finished to complete the process and send your message to us
4. We will reply you as soon as possible with Email or online
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
