รายละเอียดสินค้า:
การชำระเงิน:
|
| ชื่อผลิตภัณฑ์: | Gap Pad Filler ที่ใช้ซิลิโคน วัสดุ GAP PAD ความร้อนแบบอ่อนสำหรับโปรเซสเซอร์ AI เซิร์ฟเวอร์ AI โทรคมน | แอปพลิเคชัน: | โปรเซสเซอร์ AI, เซิร์ฟเวอร์ AI, บ้านอัจฉริยะ, โทรคมนาคม |
|---|---|---|---|
| อุณหภูมิในการทำงานที่แนะนำ: | -40 ถึง 200 ℃ | การนำความร้อน: | 5.0W/m-K |
| ความแข็ง: | 65/20 ฝั่ง 00 | ความหนาแน่น: | 3.2 ก./ลบ.ซม |
| สี: | สีเทาเข้ม | ความหนา: | 0.010"(0.25มม.)~0.200"(5.0มม.) |
| คำหลัก: | แผ่นช่องว่างความร้อน |

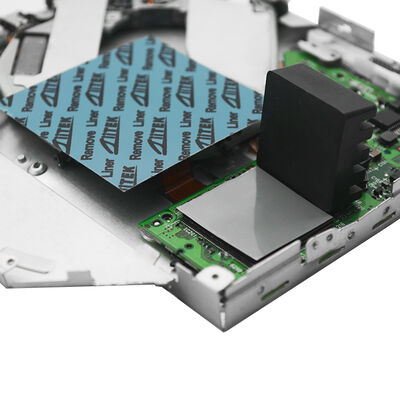

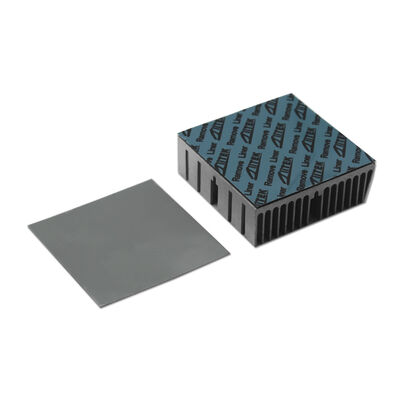

Silicone-Based Gap Pad Filler Soft Thermal GAP PAD Materials For AI Processors AI Servers Smart Home Telecom
The TIF®100-50-11US Series is a thermal pad specifically designed to tackle the high level cooling challenges and environments sensitive to extreme mechanical stress. It combines higt thermal conductivity with a near-fluid ultimate softness, ensuring perfect filing of the contact interface even under ultra-low mounting pressure, completely eliminating air thermal resistance, and providing superior thermal solutions and physical protection for the most precise and higt heat flux electronic components.
Features
> Good thermal conductive: 5.0W/mK
> Moldability for complex parts
> Easy release construction
> Electrically isolating
> High durability
Applications
Electronic Components – 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robotics, Servers, Smart Home, Telecom, etc.
| Typical Properties of TIF®100-50-11US Series | |||
| Property | Value | Test method | |
| Color | Dark Gray | Visual | |
| Construction & Compostion | Ceramic filled silicone elastomer | ****** | |
| Density(g/cm³) | 3.2 | ASTM D792 | |
| Thickness Range(inch/mm) | 0.010~0.020 | 0.030~0.200 | ASTM D374 |
| (0.25~0.50) | (0.75~5.0) | ||
| Hardness | 65 Shore 00 | 20 Shore 00 | ASTM 2240 |
| Recommended Operating Temperature | -40 to 200℃ | ****** | |
| Breakdown Voltage(V/mm) | ≥5500 | ASTM D149 | |
| Dielectric Constant @ 1MHz | 6.0 MHz | ASTM D150 | |
| Volume Resistivity | ＞1.0X1012 Ohm-meter | ASTM D257 | |
| Flame rating | V-0 | UL 94 (E331100) | |
| Thermal conductivity | 5.0W/m-K | ASTM D5470 | |
| 5.0W/m-K | ISO22007 | ||
Product Specifications
Standard Thickness: 0.010" (0.25 mm)~0.200" (5.00 mm) with increments of 0.010" (0.25 mm)
Standard Size: 16"X16" (406 mm×406 mm)
Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).
The TIF® series is availablein custom shapes and various forms.
For other thicknesses or more information, please contact us.
Company profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
