รายละเอียดสินค้า:
การชำระเงิน:
|
| ชื่อผลิตภัณฑ์: | สารนำความร้อนที่ใช้ซิลิโคนนำความร้อนได้ดีสำหรับอุปกรณ์ห้องปฏิบัติการอัตโนมัติของเซมิคอนดักเตอร์ | สี: | สีเทาเข้ม |
|---|---|---|---|
| การก่อสร้างและองค์ประกอบ: | วัสดุซิลิโคนเติมเซรามิก | ความหนาแน่น: | 3.25g/cm3 |
| การนำความร้อน: | 5.0 w/mk | คอนสแตนตรอัดไฟฟ้า @ 1MHz: | 7.7 |
| คำหลัก: | วางตัวนำความร้อน | คะแนนเปลวไฟ: | UL 94 V-0 |
| แรงดันพังทลาย(V/mK): | ≥6000 |

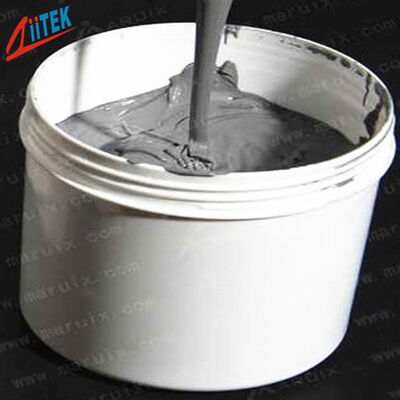

Good Thermal Conductivity Silicone-Based Thermal Conductive Paste For Semiconductor Automatic Laboratory Equipment
TIF®050-11P is a thermally conductivepaste with excellent interface thermal resistance characteristics and outstanding plasticity, capable of fully meeting the strict thermal management performance requirements of various designs; this material has extremely low hardness, possesses free-forming ability, and is easy to construct and assemble, demonstrating good stability in high-temperature environments. Its low-stress characteristics are particularly suitable for electronic devices that require high precision and high reliability, effectively reducing the mechanical stress on sensitive components during assembly and operation, ensuring the long-term stable operation of products in various application environments.
Features
>Good thermal conductivity
> Low stress, protect sensitive components.
> Strong plasticity,good stability
> Superior dielectric properties
Applications lnclude
> Al server
> Industrial equipment
> Medical electronic devices
> LED TV,LED lighting fixtures
> Automotive Electronics (New Energy and Intelligence)
> High end consumer electronics and portable devices
> Power module
> LED backlight module, LED lighting
> High speed hardware driver
> Micro heat pipe
> Vihicel enginee controller
> Telecom industry
> Semiconductor automatic
> Laboratory equipment
| Typical Properties of TIF®050-11P Series | ||
| Property | Value | Test Method |
| Color | Dark Gray | Visual |
| Construction &Compostion | Ceramic filled silicone material | Ziitek Test Method |
| Density | 3.25 g/cm³ | ASTM D792 |
| Thermal Conductivity | 5.0W/mK | ASTM D5470 |
| Breakdown Voltage(V/mK) | ≥6000 | ASTM D149 |
| Dielectric constant @ 1MHz | 7.7 | ASTM D150 |
| Volume resistivity(Ohm·cm) | 8.0x1013 | ASTM D257 |
| Viscosity(mPa.s) | V-0 | UL94 |
Packaging Specifications
Packaging specifications: 0.5kg,1kg,2kg;
If you have any other specification requirements, please contact our company.
Company profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials.
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract.
5.Free sample offer.
6.Quality assurance contract.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
