รายละเอียดสินค้า:
การชำระเงิน:
|
| ชื่อผลิตภัณฑ์: | แผ่นความร้อนแล็ปท็อปสำหรับการระบายความร้อนด้วยอุปกรณ์อิเล็กทรอนิกส์ | ความหนา: | 0.020 "(0.5 มม.) ~ 0.200" (5.0 มม.) |
|---|---|---|---|
| การนำความร้อน: | 1.5 วัตต์/ลบ.ม | ความแข็ง: | 27 ฝั่ง 00 |
| อุณหภูมิใช้งานต่อเนื่อง: | -45 ถึง 200 ℃ | คำสำคัญ: | แผ่นความร้อน |
| สี: | สีเทา | แอปพลิเคชัน: | การระบายความร้อนด้วยอุปกรณ์อิเล็กทรอนิกส์ |

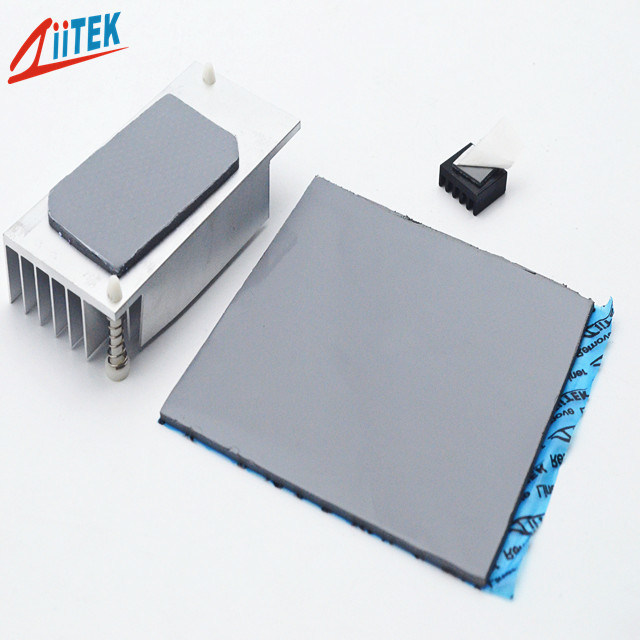

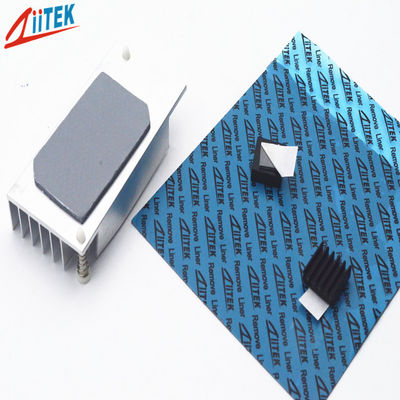

Laptop Thermal Pad For Electronics Cooling
The TIF®100-02U thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available
Applications
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
| Typical Properties of TIF®100-02U Series | |||
| Property | Value | Test method | |
| Color | Gray | ****** | |
| Construction &Compostion | Ceramic filled silicone elastomer | ****** | |
| Thickness range | ≤ 0.50mm | 0.75mm~5.0mm | ASTM D374 |
| Specific Gravity | 2.2g/cc | ASTM D297 | |
| Hardness | 35 Shore 00 | 27 Shore 00 | ASTM 2240 |
| Continuos Use Temp | -45 to 200℃ | ****** | |
| Dielectric Breakdown Voltage | > 5500 VAC | ASTM D149 | |
| Dielectric Constant | 3.5 MHz | ASTM D150 | |
| Volume Resistivity | 1.0 X1012 Ohm-meter | ASTM D257 | |
| Flame rating | 94 V0 | UL E331100 | |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | |
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes:8" x 16"(203mm x406mm)
Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Company profile
Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Independent R&D team
